U Type Feed Mixer

Animal U Type Feed Mixer are used in feed mills for the mixing of feed ingredients and premixes. Animal Feed Mixing Machine plays a vital role in the feed production process, with efficient mixing being the key to good feed production. This feed mixer for poultry feeds is also used in feed industries or farms.
Share With :
Product description
Machine Functions
Product features
parameter
Inquiry
Product description

Unique design system ensures full airflow balance of feed, suitable for premix, poultry feed, aquatic feed, additives, chemical and pharmaceutical industries.
Different types of raw materials are added to the mixer in batches according to different animal formula requirements.
Widely used for mixing animal feed and fertilizer powder, granule etc.,various liquid can be added.
Mixing time per batch is just 3-6minutes, Now it is widely used in animal feed industry, fertilizer industry, aquatic product breeding, chemical industry, aquatic product breeding, medicine and so on.

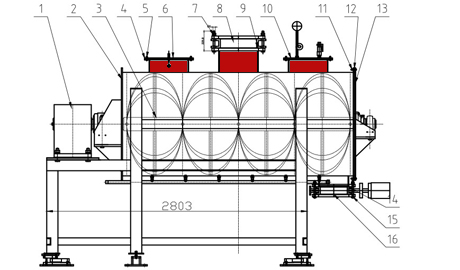

1. Transmission 2. Housing welding 3. Rotor 4. Seal 5. Bolt 6. Cover 7. Bolt 8. Pneumatic butterfly valve 9. Seal 10. Cover 11. Bolt 12. Seal 13. Right wall panel Welding 14. Seal 15. Bolt 16. Pneumatic butterfly valve 17. Steam line 18. Sensor part
U Type Feed Mixer
Machine Functions

U Type Feed Mixer
01
The advantage of the horizontal ribbon mixer is that the mixing speed is fast and a shorter mixing cycle can be used.
U Type Feed Mixer
02
Mixer Coefficient of variation is less than 5%, the mixing time is 5 minutes, then the materials can be discharged form one side.
U Type Feed Mixer
03
There is no dead corner when mixing, and this machine is easy to maintenance.
U Type Feed Mixer
04
The horizontal ribbon mixer can not only mix materials with poor scattering and adhesion, but also add a certain amount of liquid feed.
Product features

1.The cylinder section is round in shape, mixed without dead angle, mixing time 2-4 minutes.
2.One end discharge, direct loading, simple equipment, low investment.
3.Mixing uniformity: coefficient of variation CV ≤ 7%.
Product parameter

SPECIFICATION
Model Capacity Power
Function and application
SLHY-0.3 150 2.2
U-shaped ribbon mixer is used for mixing powder raw materials, high mixingcoefficient, U-shaped design,
no residue, mostly used in feed production lines over 300 kg.
SLHY-0.6 300 4
SLHY-1.0 500 7.5
SLHY-2.0 1000 18.5
