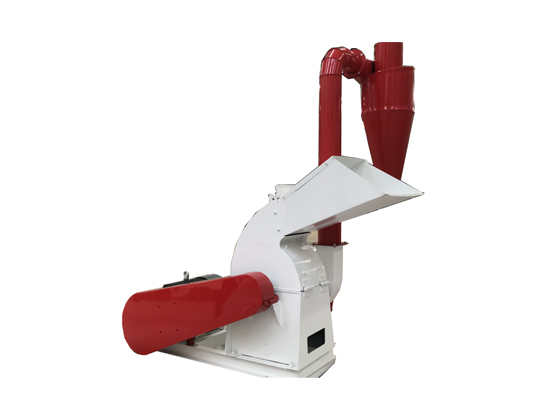

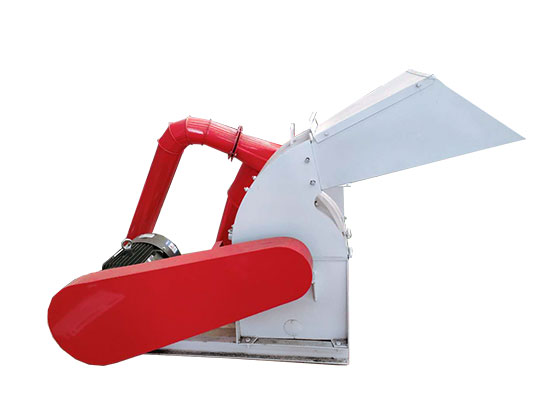

80-2000 KG/H Multifunctional Straw Crusher

Multifunctional straw crusher is also named hammer mill crusher,corn hammer mill etc.The main function of the smashing part of the multi-purpose straw pulverizer is to process corn, wheat, beans, sorghum, sweet potato, broken bean cake, dried corn stalk, dried bean stalk, wheat straw, etc. into powder and other granules.It is a kind of machine used to crush the corn,grain,dry oilcake, It is multifunctional,also can crush the dry straw,grass,stalk,plastic,small tree branches,wood chips,etc。
Share With :
Product description
Machine Functions
Product features
parameter
Inquiry
Product description

The working process of multi-functional straw pulverizer
The material enters the crushing chamber through the inlet of the upper casing, and the material is gradually crushed under the action of the high-speed rotating hammer and the friction of the sieve plate, and is discharged from the base discharge port through the sieve hole under the action of centrifugal force and air flow.

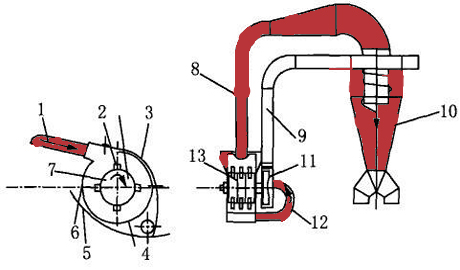

1.Feeding hopper  2. Hammer  3. Tooth plate  4. Sieve  5. Lower body
6. Upper body  7. Rotor  8. Return pipe  9. Discharge pipe  10. Collecting cylinder
11. Fan  12. Suction tube  13. Hammer plate

The multi-functional straw pulverizer consists of several parts such as a material slide, a crushing chamber and a conveying device. It adopts high carbon alloy steel blade, high speed and strong air suction pulverizing system, stable performance, durable and good pulverizing effect. The pulverizing chamber has a rotor, and the rotor is composed of a disc and a movable hammer. Sieves and tooth plates are also the main working components of the shredder. During operation, the material to be processed enters the pulverizing chamber from the stock slide, is subjected to repeated impact, friction and collision on the tooth plate by the high-speed rotating hammer, thereby being gradually pulverized until the required particle size leaks through the sieve hole. The leaked feed is sent to the collecting cylinder through the conveying fan and the conveying pipe, and then separated in the collecting cylinder, and the powder is discharged from the bottom to be bagged, and the air is discharged from above. It is equipped with a vacuum cleaner and is free of powder contamination. It has the characteristics of low temperature, low noise and high efficiency.

Multi-functional straw pulverizer Note:
1. The pulverization fineness is determined by the size of the sieve aperture. This type of pulverizer is equipped with a variety of sieves of various apertures, which can be selected according to requirements.
2. The pulverizing rotor is a high-speed rotating component, and the hammer and other parts must be fixed firmly; in the work, metal, stone and other hard objects should be prevented from entering the machine to avoid damage.
3. The hammer piece is a wearing part, and the wear condition should be checked frequently; when the corner of the hammer piece is worn until it has no corners, it can be used for turning or turning the head, but the hammer mounting position cannot be replaced with each other, and the new one cannot be exchanged, so as not to affect the rotor. balance.
4. When the pulverized material is longer or larger, it should be made into small pieces or small pieces to feed people first. Equipment use: used to crush corn, wheat, soybean, rice, soybean meal, etc.; also can crush corn stalks, cotton stalks, peanut mites, weeds, branches and other materials, the fineness of the material can be less than 2 mm after pulverization.

80-2000 KG/H Multifunctional Straw Crusher
Machine Functions

80-2000 KG/H Multifunctional Straw Crusher
01
Mainly used for crushing materials such as forage, straw and thorns;
80-2000 KG/H Multifunctional Straw Crusher
02

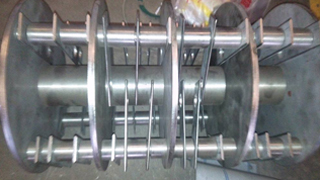

Hammer-type crushing design, hammer after special processing, good quality, long life and high crushing efficiency;
80-2000 KG/H Multifunctional Straw Crusher
03
The pulverized finished material is transported to the next process or equipment by wind transportation within a certain distance, which effectively saves construction cost;
80-2000 KG/H Multifunctional Straw Crusher
04
The rotor is tested by high-precision dynamic balance to ensure that the pulverizer does not move.
Product features

1.Multifunctional straw crusher produces 200kg --- 2000kg / h, which can meet the daily production needs.
2.The core part -- the hammer is scientifically designed with two impact parts, so when one part wears out, you can roll over and use the other part.
3.Rough grinding and fine grinding can be achieved by adjusting the gap between the hammer and the screen.
4.Change the size of the screen and the variable speed inverter control so that the same crusher can process various raw materials.
5.Equipped with a blower, the pulverized material can be collected directly and transported to the next step for further processing.
Product parameter

PRODUCT SPECIFICATION
Model  Power(kw) Capacity(kg/batch) Weight(kg)
LM-FS400 7.5 200-500 260
LM-FS420 11 300-900 340
LM-FS500 15 800-1700 540
LM-FS520 22 900-2000 680
