Soybean Processing Line

The soybean processing line is designed to produce high-quality cake with minimal residual oil content and maximum yield of soybean oil from beans. Soybean oil can be used for both food and technical purposes. The cake is used as a protein-rich additive in the production of compound feeds or in the feeding diet. It provides the company with protein raw materials in the shortest possible time and is a tool for import substitution. We manufacture equipment and complete production lines for soybean mechanical processing that is essential for soybean processing plants.
Share With :
Product description
Machine Functions
Product features
parameter
Inquiry
Product description


Raw materials and products:

Raw materials are soybeans, products are cake and soybean oil.



Main technological stages of production

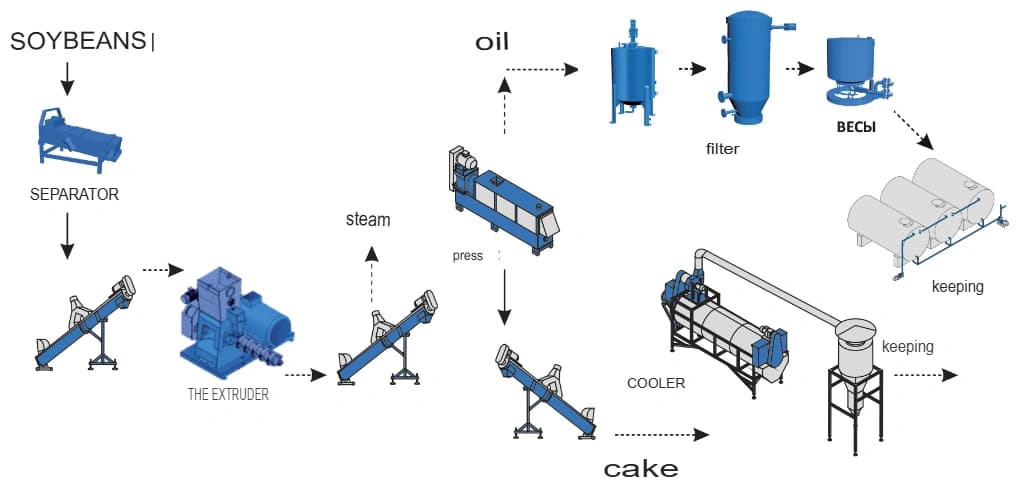

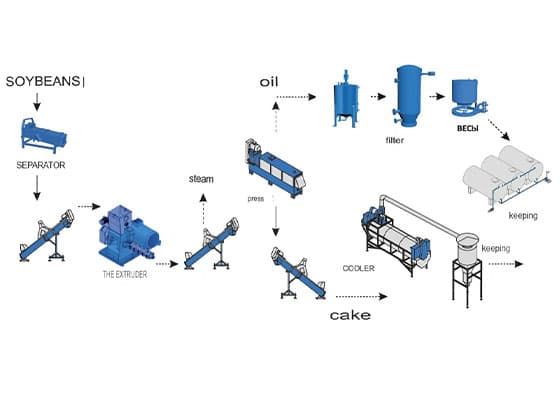

The technological scheme of the soybean processing line includes the following operations:

  • Seed weighing (optional);
  • Cleaning of seeds from dust, sand, stones, large impurities and metal impurities;
  • Extrusion;
  • Pressing;
  • Oil purification (filtration);
  • Oil storage and release;
  • Cooling, storage and release of cake;

Main Equipment required to Setup Complete Soybean Processing Plant


  • Grain Cleaning Separator;
  • Soybean Extruder
  • Oil Press
  • Hammer Mill
  • Oil Storage Tanks
  • Cake/Meal Cooler
  • Bucket Elevator
Application

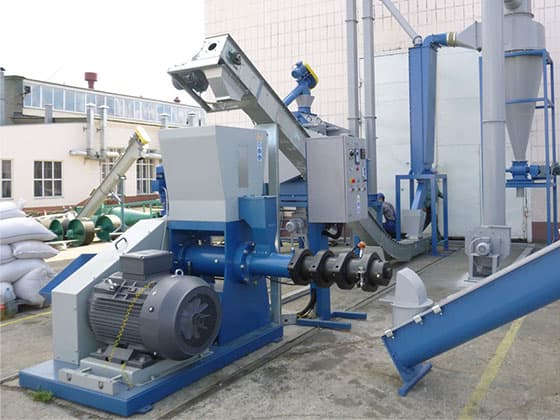

Soybean Processing Line
01
soybean cake production with oil content of up to 8%
Soybean Processing Line
02
soybean oil production process
Product features

1. Especially suitable for the raw material pretreatment (such as expanded soybeans, corn, soybean meal, etc.) in medium and large-scale feed enterprises.
2. Wearing parts such as the screw, barrel, and pressure ring are made of new wear-resistant alloy materials, ensuring a long service life.
3. Our soybean processing equipment and soybean meal production technology reduces oil content to 7-8% in one single pass.
Product parameter

Model Main Power Capacity(T/H)
Soybean Corn
EXP140S 55 0.9-1.2 0.55-0.75
EXP140S 75 1.2-1.5 0.74-0.9
EXP140S 90 1.4-2.8 0.8-1.2
EXP160S 110 1.5-2.4 0.9-1.5
EXP200S 132 3.0-4.2 1.3-1.7
EXP200S 160 3.5-4.6 1.5-2.0
EXP225S 200 4.0-6.5 2.2-2.8
EXP225S 250 5.0-7.5 2.6-3.5
