Double Shaft Paddle Mixer
Double Shaft Paddle Mixer

Double Shaft Paddle Mixer

Double Shaft Paddle Mixer machines mix 40-120 sec/batch,mixed in gravity-free state,variety of liquids can be added.Two open doors structure,discharge rapidly.Conveyed by three chains,run in low speed,stable operation movement.
Share With :
Product description
Machine Functions
Product features
parameter
Inquiry
Product description

Double Shaft Paddle Mixer machines mix 40-120 sec/batch,mixed in gravity-free state,variety of liquids can be added.Two open doors structure,discharge rapidly.Conveyed by three chains,run in low speed,stable operation movement.

The improvement of open door shaft and link mechanism ensure that the angle of openning door is larger than 90°(the materials can't fall on the door),close door which is deadlocked.It can be used for premix,poultry feed,aquatic feed,additives,chemical and medicine industries,etc.

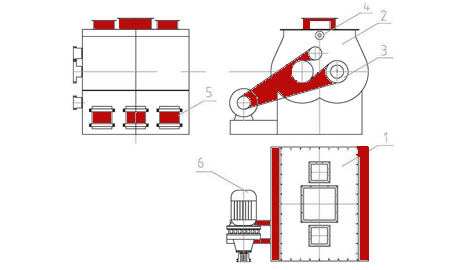

This mixer is also named Horizontal twin-axis paddle mixer, horizontal double-axis paddle (no moving) mixer consists of horizontal W-shaped container, top cover with or without opening, double shaft with blade mounted and counter-rotating , the transmission unit, the support frame seal, the discharge structure and other components. Due to the two-axis reverse rotation, the angled blades circulate the material in the axial direction and the radial direction to achieve uniform mixing of the materials. The material is thrown in the mixer to form a fluid layer, which generates instantaneous weight loss, and produces a cross-interlacing, blending, diffusion and the like in the gravity-free mixing machine without destroying the mixture. And grinding, also has a good adaptability to the mixing of coarse and fine materials, so that the material can achieve the best mixing effect in a short time. So this series of mixers is also called gravity-free mixer. Compared with other mixers, it has the advantages of short mixing time, wide adaptability and no damage to the mixture.

Double Shaft Paddle Mixer
Machine Functions

Double Shaft Paddle Mixer
01
Mixing in the weightless state, no segregation, a variety of liquids can be added; three-row chain drive, stable operation at low speed.
Double Shaft Paddle Mixer
02
Short mixing time (40-120 seconds), high mixing uniformity (CV ≤ 5%); full-length double-door mechanism, no leakage, rapid discharge, and minimal residue.
Double Shaft Paddle Mixer
03
Multi-channel liquid addition system for compressed air injection systems.
Double Shaft Paddle Mixer
04
Can be used in premixes, poultry feed, aquafeeds, additives, chemical and pharmaceutical industries.
Product features

1.Mixing under weight loss, no segregation, can add a variety of liquids, double door mechanism, no leakage, rapid discharge, minimal residue.
2.Short mixing time (40-120 seconds), high mixing uniformity (CV ≤ 5%) up to 2%
3.Three-row chain drive for stable operation at low speeds.
4.The angle of opening the door when unloading is greater than 90 degrees to ensure that the material does not fall on the door. The advanced additive spray system adds multiple liquids and solids at the same time, making it precise and easy to handle.
Product parameter

PRODUCT SPECIFICATION
Model Capacity(kg/batch) Power(kw)
Function and application
S SHJ-0.5 250 5.5
Double-shaft paddle mixer can mix powder and granular raw materials, with stable mixing effect and high efficiency, suitable for large-scale commercial automatic feed production lines
S SHJ-1.0 500 11
S SHJ-2.0 1000 18
S SHJ-4.0 2000 30
