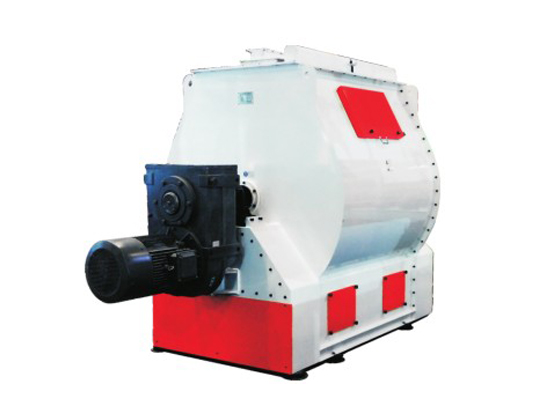

Single Shaft Paddle Mixer
Shaft Paddle Mixer
Single Shaft Paddle Mixer
Shaft Paddle Mixer

Single Shaft Paddle Mixer

SLHJ series horizontal single-axis paddle mixer is suitable for mixing powder, granule, flake, block, miscellaneous and viscous materials in feed, food, chemical, pharmaceutical, pesticide and other industries. Uniform distribution ensures the quality of the mixed feed.
Share With :
Product description
Machine Functions
Product features
parameter
Inquiry
Product description

SLHJ series horizontal single-axis paddle mixer is suitable for mixing powder, granule, flake, block, miscellaneous and viscous materials in feed, food, chemical, pharmaceutical, pesticide and other industries. Uniform distribution ensures the quality of the mixed feed.

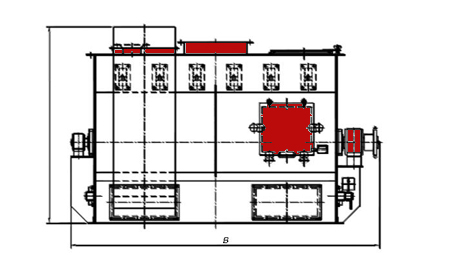

Structure and working principle

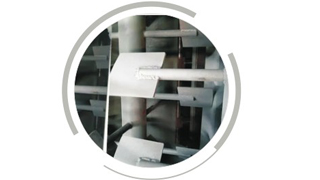

1.Rotor
The rotor consists of a shaft and a blade welded thereto. The angle between the upper blade and the blade is ensured to be evenly mixed in the mixer.

2. Body
The return air duct is installed on the body _, so that the air returns to the discharge chamber when the material is cut, so as to ensure the unloading of the material. There are inspection doors on both sides of the machine body, which makes maintenance and debugging more convenient.

3. Discharge gate
A sealing strip is arranged around the lower door frame of the lower part of the body. When the door is closed, the sealing strip on the discharging door body is closely attached to the casing, so that the materials in the machine are not leaked.
The discharge control mechanism is composed of a cylinder and a connecting rod. The discharge door is mounted on the shaft, and the cylinder reciprocates, and the link mechanism rotates the shaft, thereby driving the discharge door to open or close (the discharge door is closed when the cylinder piston rod is pushed out), and ensuring that the connecting rod is dead after the door is closed. Point status.

4. Liquid addition
The liquid adding device is composed of a cover plate, a nozzle, and the like, and the liquid is sprayed through the nozzle in a fan shape, and a plurality of nozzles are evenly distributed throughout the entire length of the casing. The external tubing is connected by a hose to the internal thread of the cover.


Single Shaft Paddle Mixer
Machine Functions

Single Shaft Paddle Mixer
01
Mixing in the weightless state, no segregation, a variety of liquids can be added; three-row chain drive, stable operation at low speed.
Single Shaft Paddle Mixer
02
Short mixing time (40-120 seconds), high mixing uniformity (CV ≤ 5%); full-length double-door mechanism, no leakage, rapid discharge, and minimal residue.
Single Shaft Paddle Mixer
03
Multi-channel liquid addition system for compressed air injection systems.
Single Shaft Paddle Mixer
04
Can be used in premixes, poultry feed, aquafeeds, additives, chemical and pharmaceutical industries.
Product features

1.Mixing under weight loss, no segregation, can add a variety of liquids, double door mechanism, no leakage, rapid discharge, minimal residue.
2.Short mixing time (40-120 seconds), high mixing uniformity (CV ≤ 5%) up to 2%
3.Three-row chain drive for stable operation at low speeds.
4.The angle of opening the door when unloading is greater than 90 degrees to ensure that the material does not fall on the door. The advanced additive spray system adds multiple liquids and solids at the same time, making it precise and easy to handle.
Product parameter

Model Power voltage capacity
SLHJ0.5 5.5KW 380V 50HZ 250kg/ batch
SLHJ1 11KW 380V 50HZ 500kg/ batch
SLHJ2 22KW 380V 50HZ 1000kg/ batch
SLHJ4 37KW 380V 50HZ 2000kg/ batch
SLHJ6 55KW 380V 50HZ 3000kg/ batch
