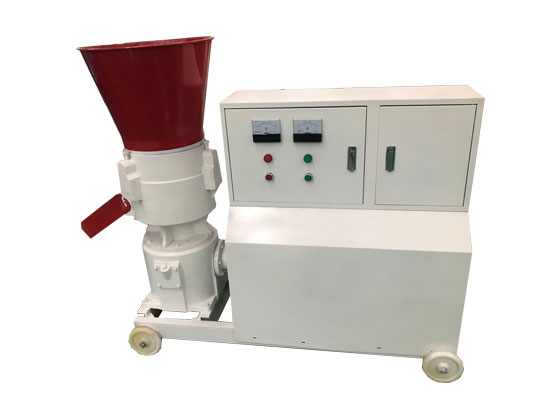

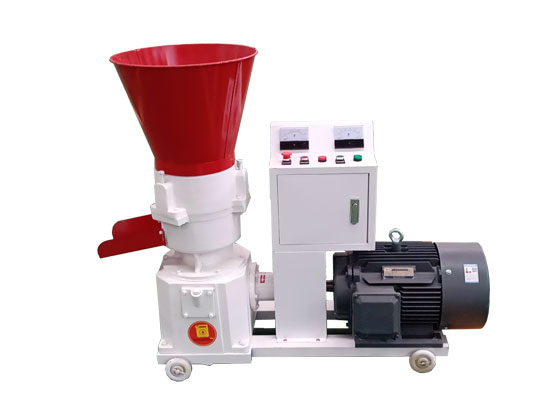

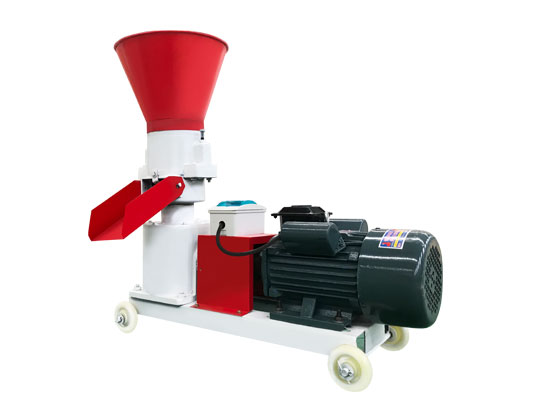

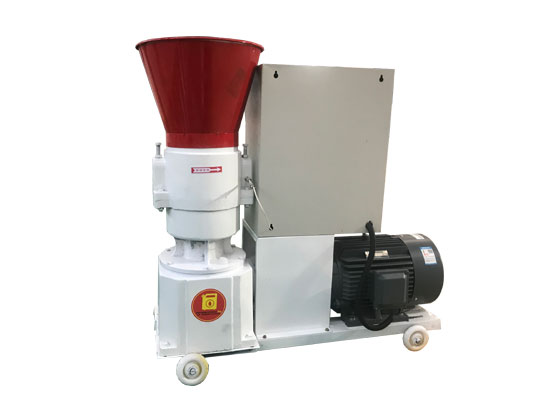

100-1200 KG/H Flat Die Poultry Feed Pellet Mill

The flat die granulator is mainly suitable for coarse fiber granulation. It has a wide range of applications in the production of biomass forming fuel and livestock granule feed, as well as organic fertilizer and compound fertilizer granulation by using crop straw. It can also be applied to low temperature granulation such as biological bacterial fertilizer, organic fertilizer and compound fertilizer. The flat mold granulator is the first choice for breeding farms and professional households to reduce the cost of breeding and improve economic efficiency. The production capacity is 100-500 kg per hour, and the small set consists of a pulverizer, a mixer, a screw conveyor, a regulator, a flat die granulator, a rotary screen and a cooler.
Share With :
Product description
Machine Functions
Product features
parameter
Inquiry
Product description

The flat die granulator has a simple structure, wide adaptability, small floor space and low noise. Powdered feed and grass powder can be granulated without the addition of liquid. Therefore, the moisture content of the pellet feed is basically the moisture content of the material before granulation. More conducive to storage. Flat Die Poultry Feed Pellet Mill machine Mainly suitable for medium-and small-scale farming professional households and other processing of various livestock and poultry and aquatic pellet feed can reduce the cost of aquaculture.

The granules made by the flat die granule machine have high hardness, smooth surface and sufficient internal ripening degree, which can improve the digestion and absorption of nutrients, and can kill common therapeutic microorganisms and parasites. It is suitable for feeding rabbits, fish, ducks, pigeons and experiments. Animals can achieve higher economic benefits than mixed powdered feeds.

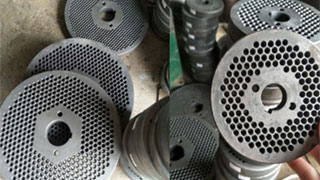

The particle size can be adjusted by changing the mold.


There are two types of flat die feed pellet machine, Die-Rotating type pellet machine and Roller-Rotating type pellet machine.
Die-Rotating type machine mainly used for animal feed pellet, like materials is grain.
Roller-Rotating type pellet machine mainly apply to wood biomass pellet, materials is wood branch etc. but if Customers materials have grass, also use Roller-Rotating pellet machine.

Diesel, electric motors and petrol engines can be customized according to customer requirements.

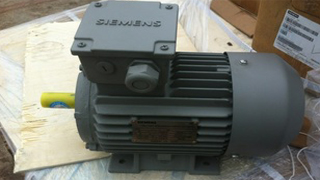

                   petrol engine                                     diesel engine                                         electric motor


The difference between the flat die machine and the ring touch particle machine

VS

100-1200 KG/H Flat Die Poultry Feed Pellet Mill
Machine Functions

100-1200 KG/H Flat Die Poultry Feed Pellet Mill
01
Flat Die Pellet Mill works on a vertical design, using gravity as the main force for feeding the material through the machine.
100-1200 KG/H Flat Die Poultry Feed Pellet Mill
02

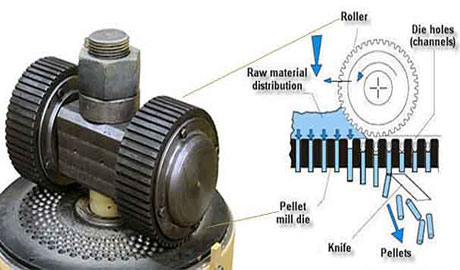

Flat Die Pellet Mill have a horizontal die, with a series of rollers sitting on the die. When material goes in from the top feed inlet, it is compressed between the rollers and die.
100-1200 KG/H Flat Die Poultry Feed Pellet Mill
03
Die-Rotating type machine mainly used for animal feed pellet, like materials is grain. if raw materials have grass, also use Roller-Rotating pellet machine.
100-1200 KG/H Flat Die Poultry Feed Pellet Mill
04
Roller-Rotating type pellet machine mainly apply to wood biomass pellet, materials is wood branch etc.
Product features

1. Simple structure.
2. Easy to clean and maintain.

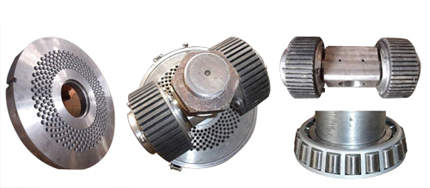

3. Spare parts are also easy to change, less cost for rollers and dies.
4. Simple operating, just 1 or 2 workers are OK.
5. The sort of pelletizer is easier to clean than the ring die pellet mill.
6. Be able to change new die and rollers faster to save time to produce pellets.
7. Small and light weight, which can be used in home,small farm,and light industrial.
8. Visibility to viewing the material during pelleting is the best way to fix problems.
Product parameter

Motor-type Parameter
Model Roller Quantity Capacity(kg) Motor Power(kw) Size(cm) Weight(kg)
LMZP-125 2 80-100 4 80*30*52 75
LMZP-150 2 90-150 4 83*30*57 80
LMZP-210 2 200-300 7.5 1200*40*70 160
LMZP-230 3 350-450 11 1180*45*73 230
LMZP-260 3 400-500 18.5 1220*45*860 260
LMZP-300 4 500-700 22 1500*550*950 350
LMZP-400 4 900-1000 30 1520*550*1120 680
LMZP-500 4 1200-1500 45 1640*850*1580 1000

Diesel-type Parameter
Model Roller Quantity Capacity(kg) Diesel Power(HP) Size(mm) Weight(kg)
LMZP-125C 2 80-100 8 82*30*61 75
LMZP-150C 2 90-150 10 86*30*63 80
LMZP-210C 2 200-300 15 1260*40*75 160
LMZP-230C 3 350-450 20 1200*45*79 230
LMZP-260C 3 400-500 35 1270*45*910 260
