Chicken Pellet Line 500-800kg

500-800kg medium chicken feed pellet production line application: used in medium scale feed mill plant / feed factory / cultivation factory; Ideal feed milling production line for high yield. The roller and main shaft bearings of poultry pellet feed machine adopt whole sealing design to ensure no leakage pollution from bearing and lubricating oil.
Share With :
Product description
Machine Functions
Product features
parameter
Inquiry
Product description

500-800kg medium chicken feed pellet production line include feed hammer mill, feed mixer, feed pellet machine,cooling machine, packing system. it can make all kinds of animal feed pellet. usually for poultry feed, cattle,cow,sheep. etc.
Chicken Pellet Line 500-800kg
Machine Functions

Chicken Pellet Line 500-800kg
01
Feed Pellets Processing Technology
Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Pellet Crushing → Screening & Grading → Pellet Packing
Chicken Pellet Line 500-800kg
02

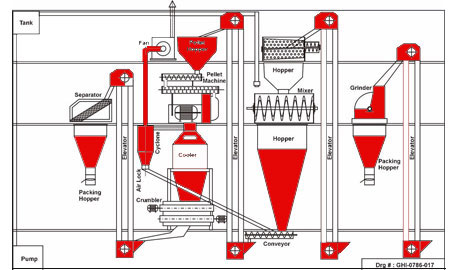

Equipment Related to poultry feed pellet production line machine
Feed Grinder →Feed Mixer → Feed Pellet Mill → Counter flow Cooler → Feed Pellets Crumbler → Feed Pellets Grading Sieve → Automatic Weighing and Packing Machine
Chicken Pellet Line 500-800kg
03
This design can meet the need of general chicken feed production. Selection of feed production equipment advanced to layout reasonable, can effectively reduce energy consumption and material consumption in production.
Chicken Pellet Line 500-800kg
04
The feed processing line can be customized design according to your requirements.
Product features

Decreased ingredient segregation
Decreased feed wastage
Easy storage and transportation
Improved palatability
Reduced selective feeding
Product parameter

For 500-800kg/h chicken feed  pellet  line
No. Machine name Description Machine Picture

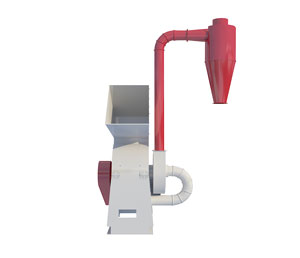

1 FEED CRUSHING MACHINE
Size:1100*900*1200mm
Power:7.5kw
Capacity:800kg/h
Machine weight:200kg

2 CONVEYOR
Size:1700*1700*1500mm
Power:7.5kw
Capacity:1000kg/h
Machine weight:250kg

3 FEED MIXING MACHINE
Size:5m
Power:3kw
Capacity:800kg/h
Machine weight:200kg

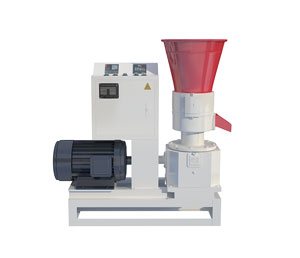

4 FEED PELLET MILL
Size:1350*560*1220mm
Power:22kw
Capacity:500kg/h
Machine weight:430kg

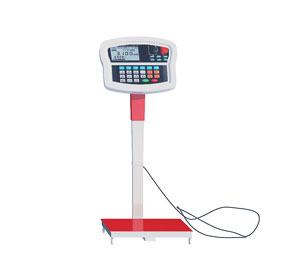

5 WEIGHING MACHINE
Size:800*400*500mm
Power:0.7kw
Capacity:<=300kg
Machine weight:150kg

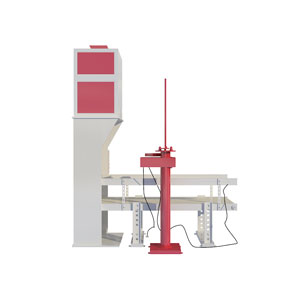

6 PACHKING AND SEALING MACHINE
Size:350*320*460mm
Power:0.09kw
Capacity:900bag/h
Machine weight:65kg
